Processor

•Intel® Atom™ processor E3815

(1.46 GHz single core, 512 KB cache, 5 W thermal design power (TDP))





Memory

•DDR3L SO-DIMM

•1.35V, 1333/1600 MHz (down clocked to 1066 MHz), 8 GB maximum





Graphics

•Intel® HD Graphics (up to 400 MHz)

•1x HDMI* 1.4a

•1x Embedded DisplayPort* (eDP) 1.3 (2 lanes with backlight and adjustable voltage/timings)

•1x VGA





Audio

•Multi-channel digital audio via HDMI interface

•Back panel headphone/microphone jack





Peripheral connectivity

•1x USB 3.0 connector on the front panel

•2x USB 2.0 connectors on the back panel

•3x internal USB 2.0 ports (2x5 + 1x5 headers)





Storage

•4-GB eMMC storage device built in

•Internal support for 2.5-inch HDD or SSD (up to 9.5mm thickness)





Networking

•10/100/1000 Mbps Ethernet port

•Half-length PCIe* mini-card slot and wireless antennas pre-assembled

(for wireless card support)

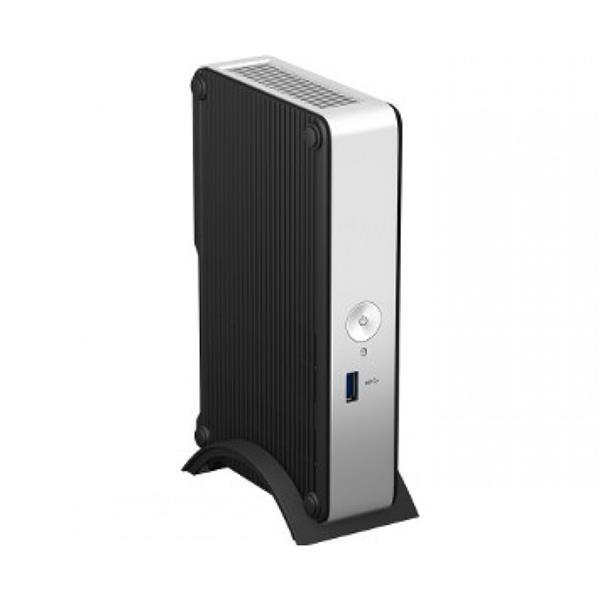

Enclosure

•Metallic gray plastic ring with black sides

•Dimensions: 190mm x 116mm x 40mm





Power adapter

•12V, 36W wall-mount AC-DC power adapter

(12-19V DC back panel power connector)

•Multi-country plugs (IEC types A/C/G/I)





Additional features

•Fanless design

•Discrete trusted platform module (TPM 1.2)

•Watchdog timer (hardwired to board reset)

•Custom Solutions header (DMIC, AppLaunch GPIO, HDMI_CEC, SMBus, I²C[0:1], PWM[0:1] w/5V buffers, 1.8/3.3/5 Vstby power)

•2x serial port headers (TXD/RXD/RTS/CTS, w/5V transceivers)

•12-24V DC internal power header

•Compatible with Windows* Embedded 8 Standard (WES 8), WES 7, Linux*

•Vertical stand

•VESA mount bracket (75 x 75mm and 100 x 100mm compatible)

•Kensington lock support

•3-year product life cycle

•3-year advanced warranty replacement





Included in the box

•Intel® NUC Board DE3815TYBE integrated in enclosure

•Vertical stand

•VESA mount bracket, with screws

•12V, 36W wall-mount AC-DC power adapter with multi-country AC plugs

(IEC types A/C/G/I)

•Intel Atom brand sticker

•Integration guide



Warranty 3-year limited warranty
